Battery Powered Electromagnetic Flow Meter

Homepage > Smart Water Control Products > Battery Powered Electromagnetic Flow Meter

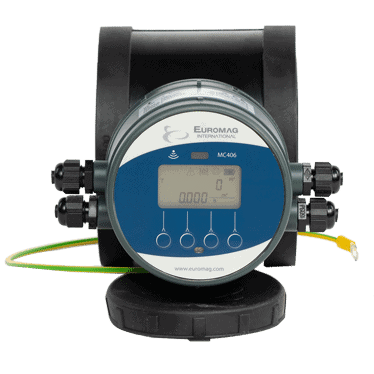

MUT2200 with MC406

The MUT2200 with MC406 is a battery powered electromagnetic water meter for use in district metering areas (DMA), water abstraction, and custody transfer measurement of potable water

(MI-001, OIML R49), irrigation, and many other applications. Unlike other water meters, the MUT2200 is a maintenance-free meter, offering a much wider range of flow, in a compact or remote mounted version. Thanks to the optimized flow profile, the MUT2200 can be installed virtually anywhere with minimal straight inlet or outlet runs. With optional pressure and temperature sensors, GSM/GPRS integrated modem and 12…24Vdc power source, the meter is the perfect solution for pressure management systems.

The highly robust structure, allows burial installation or the use in flooded areas. A full on-site verification without process interruption can be carried out using the Field Verificator service tool.

Professional Assistance

Features & Benefits

High performances to a low cost of ownership: Capability to read flow velocities of 0.015 m/s (MID-001 OIML R49 certified), within Class 1 accuracy
Multiple outputs: pulse, analog 4-20mA, Modbus, frequency, Hart protocol and programmable output
No data lost: Data automatically stored in the internal EEPROM memory. Up to 100.000 lines of active datalogging
Information always available: Add-on communication module GSM/GPRS automatically sends the information via SMS, e-mail or on a website portal www.euromagdata.com with personal ID and password. Accessible also from smart phones and tablets. Configurable FTP communication
Empty pipe detection: Empty pipe electrode supplied as standard (≥ DN65). Empty pipe detection on measuring electrodes standard for all sizes

Flow - pressure – temperature: all at the same time: Add on modules of temperature and pressure readying make the MUT2300 with MC406 one of the most complete electromagnetic flowmeter available in the market
Easy management, easy programming: A software is supplied with the unit to allow users to communicate with the MC406 via IRCOM port to any pc, lap top or windows tablet
Certifications and compliance: OIML R49-MID Class 1 (on request) / EX - IEC IECEx (on request and only separate version) / NSF ANSI61 (On model MUT2300US)
Always verified: The Euromag FIELD VERIFICATOR is available for full on-site verification, without interruption of the process
